Shockwave Therapy Machine
The Shockwave Therapy Machine is an ESWT (Extracorporeal ShockWave Therapy) device, also called Acoustic Wave Therapy, is a radial device that uses the body’s intrinsic repair mechanisms to repair body tissue. The system utilizes kinetic and acoustic wave therapy, resulting in transient cellular membrane permeability. The exchange of substances between cells is thus improved. The treatment with shockwave therapy increases blood flow in all tissue layers, including the connective tissue, through vasodilation, angiogenesis, and neovascularization.
Cover more indications
Energy ranges from 10mJ to 190mJ that are adjustable in 10mJ intervals. Accurate energy settings mean precise application control for excellent outcomes.
Precise protocols
Frequency ranges from 1Hz to 22Hz, in 1Hz intervals, adjustable during the treatment regimen depending on how the user tolerates the frequency levels.
Durable design
Each handpiece is designed to achieve 1 million pulses. An extra ballistic billet is supplied with each unit and can be replaced by the system owner. With proper maintenance, you can attain double the amount of usage.
High efficiency
Multiple custom-designed transmitters constructed of high-quality alloy allow better control of the active acoustic signal. Sizes range from 6mm focused to 36mm dispersed, allowing for an increased range of indications.
Durable use

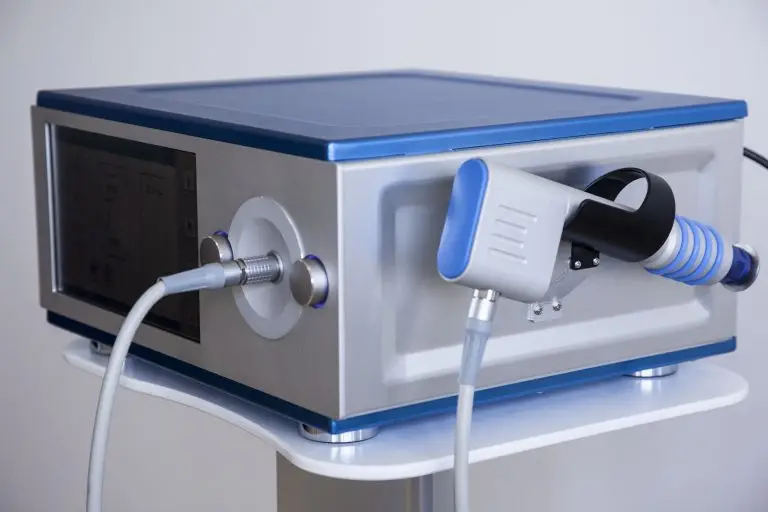

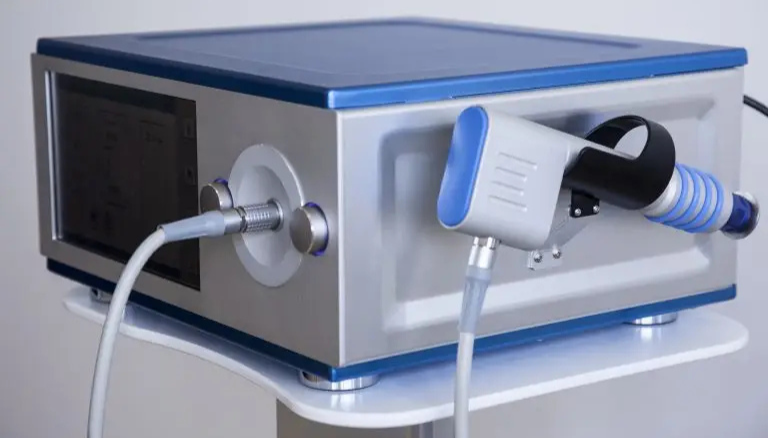

Dual-channel output: The radial shock wave system’s cooling is thermostatically controlled and automatically engages when needed for self-protection. The system can operate for several hours at a time.
Where has the Shockwave Therapy Machine been successful?
- Muscle and Connective Tissue Regeneration
- Sports Injury and Rehabilitation
- Radial and Ulnar Epicondylitis
- Tendinitis of the Shoulder
- Post Muscular Injury
- Non-invasive therapeutic pain relief
- Shoulder pain
- Reduced shoulder range of motion
- Chronic Rotator Cuff Injury
- Patellar Tendinitis
- Patellar Tendinopathy
- Achilles Tendinopathy
- Plantar Fasciitis or Faxciopathy
- Heel Spurs
- Myofascial Trigger Points in the back and neck
- Non-Union & Delayed Union Stress Fracture
- Leg Cramps
- Trochanteric Bursitis
- Periostitis (Shin Splints)
- Dupuytren’s Disease
- Thumb Basal Joint Arthritis
- Quadratus Lumborum – Bluteus Muscular Pain
- Tibialis Posterior Soleus Gastrocnemius – Muscle Pain
- Quadricep Muscle Pain
- Muscular Imbalance
- Low Back Pain
- Erectile Dysfunction Treatment
- Peyronie’s Disease
- Chronic Pelvic Pain Syndrome
- Premature Ejaculation
- Cellulite Reduction
- Stretch Marks
- Body Shaping
- Lymphatic Congestion Elimination
- Regulate Muscle Tone
- Skin Tightening
- Buttock Tightening
- Post Cryolipolysis / Liposuction tightening
- Stretch Marks / Stria
- Keloid Scars
- Diabetic Foot Ulcer
- Lower Limb Wound
- Burn Injury
Features of Shockwave Therapy Machine - PulseWave

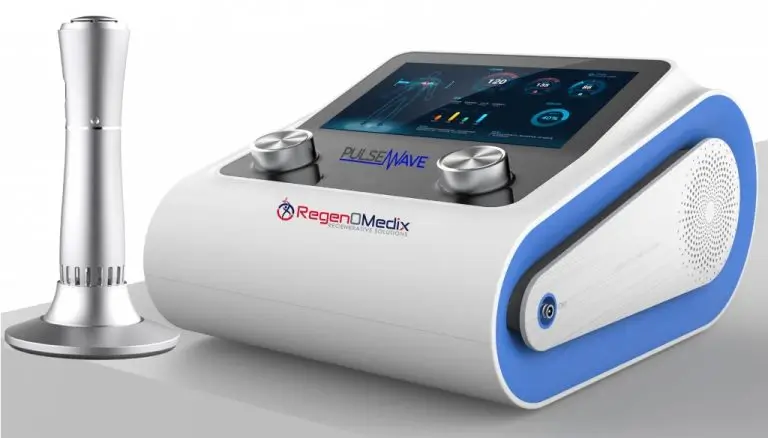

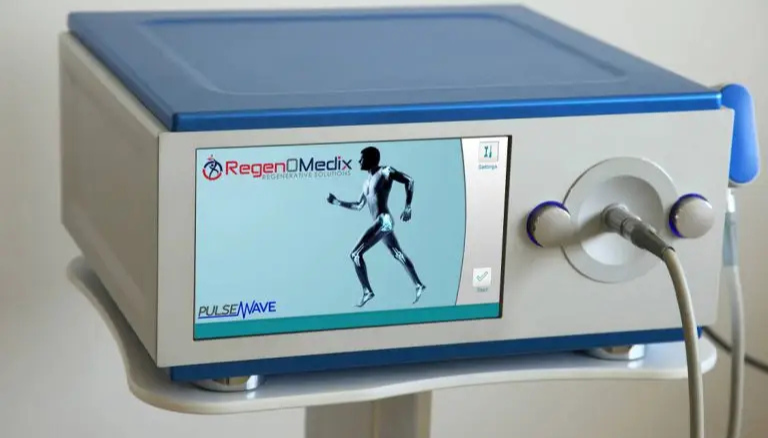

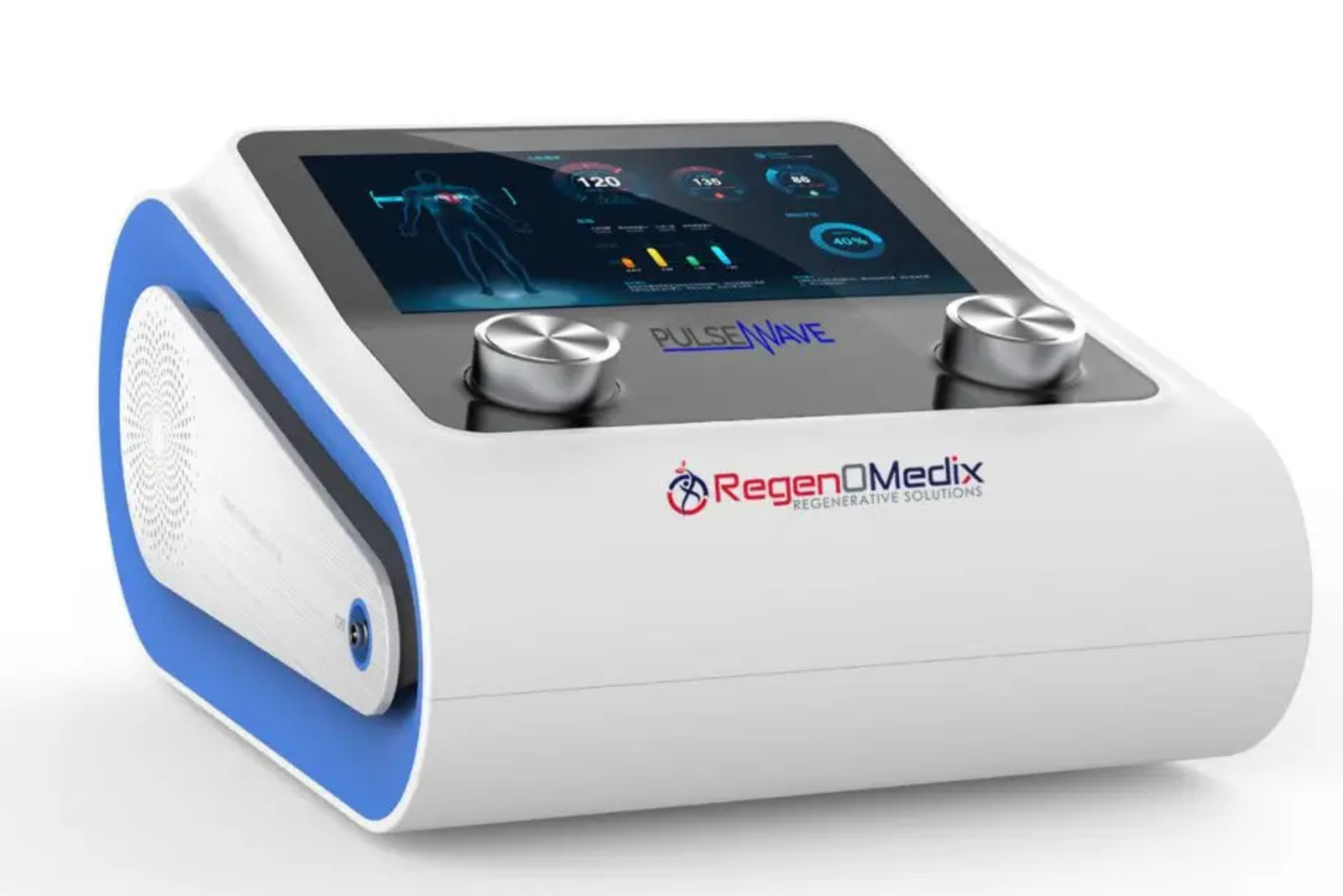

The radial shockwave device features a touch screen and two quick set knobs that allow you to fast tune the acoustic wave therapy frequency and energy. The energy settings range from 10mJ to 190mJ, at 10mJ intervals for accurate increments of treatment to be distributed, and the frequency settings range from 1Hz to 22Hz, at 1Hz intervals that make adjusting frequency a simple task during a procedure. The ballistic bullet included is optimized for longevity, carrying at least two million shots per handpiece and supporting over six thousand simultaneous shots before it shifts into a self-protection mode to prevent overheating. It comes with five different heads depending on indication being treated.
Additionally, the system includes five rich transmitters made with high-grade alloy, a dual channel output for handpieces and 45 treatment protocols built into the system with customizable settings and comprehensive instructions that any user can easily master. The software that helps run the system allows you to change shot numbers during a procedure and shift channel parameter, three burst modes, and profile management that keeps track of your patients based on the information they provide you. If a patient’s pain level during the procedure is intolerable, the operator may adjust the preset parameters to accommodate the patient.
For new operators, a step by step wizard is available and is easy to use. For experienced operators, fast mode is provided to begin the treatment menu immediately.
- 45 Built-in treatment protocols
- Wizard style menus; new or experienced operator can easily master.

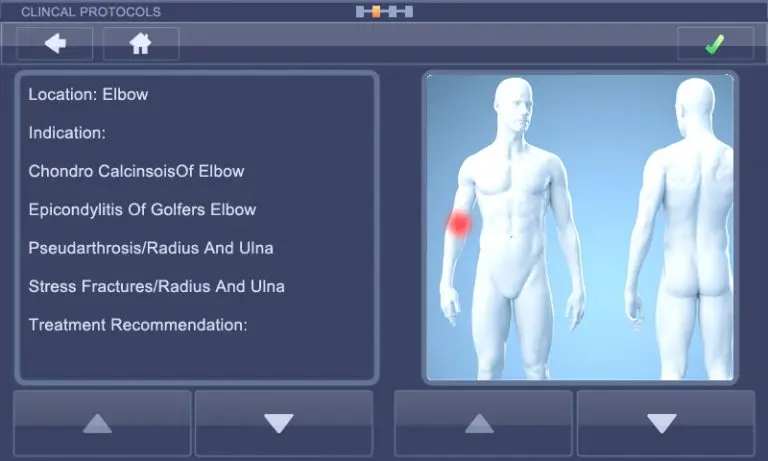

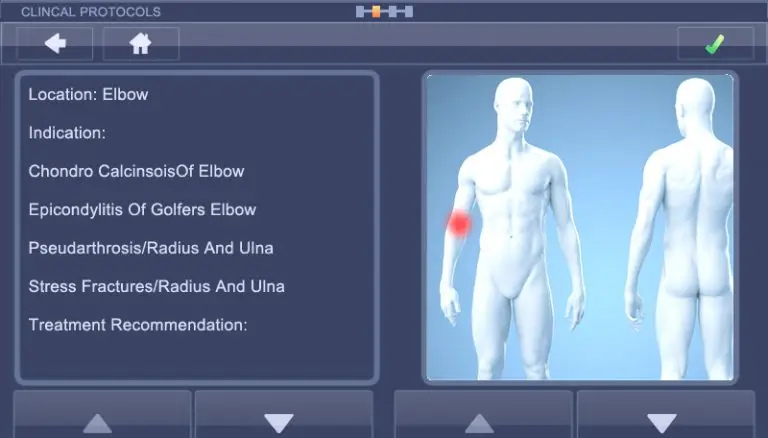

- Vivid pictures show possible trigger points
- Recommended parameters – System will guide user to set the correct protocols.
- Customized settings – Save your own settings and rename them
- Target shot counter can be revised at any time – Increase or decrease shot numbers at any time during treatment.
- Burst mode supported – 3 Burst modes and continuous mode.
- 2 isolated channel interface – Change parameter for each channel separately
- Customer profile management – Track each patients’ information by name, age, etc., accumulated treatment history and protocols used
Benefits - The Shockwave Therapy Machine
With over 2,000 units installed worldwide and over 20,000,000 patients treated, the Acoustic Wave Therapy System is recommended by doctors and patients alike. The production standards set by Pulse-Wave ensure quality control is thoroughly taken into consideration when shipping products to your doorstep. Technology is always updating so as time progresses, you will be able to utilize more features through the latest in hardware and software as soon as they are made available.
ZG- PulseWave Specification
ZG- PulseWave
ZG- PulseWave Plus
Type
ESWT Shockwave I Radial Shockwave
ESWT Shockwave Acoustic wave
Target
Physiotherapy, Aesthetics, Rehabilitation, Urology
Physiotherapy, Aesthetics, Rehabilitation, Urology
Source
Precise Compressed Air
Energy
10 -190mJ (0.25 to 5 Bar)
1- 5 Bar (10mj -190mj)
Energy Setting
Adjustable at 10mJ increments
1- 5 Bar (10mj -190mj)
Burst Mode
Yes: 4-8-12 pulse models
Yes: 4-8-12 pulse models
Frequency
1-22Hz
1-22Hz
Mode
Continuous or Burst Mode (4 modes)
Continuous or Burst Mode (4 modes)
Transmitter
6/15/15F/25/35mm Ti -Alloy Steel
6/10/10/10/20/35mm Ti -Alloy Steel
Hand Piece Lifecycle
1 million for handpiece
200K for transmitters
1 million for handpiece
200K for transmitters
Protocols
40 preset programs
Unlimited customized programs Manual mode with maximum flexibility
40 preset programs
Unlimited customized programs Manual mode with maximum flexibility
Patient Management
YES
More than 1000 client slots Track user history and protocol
NO
Customized setting
Unlimited
Unlimited
Software Update
USB Interface
USB Interface
Packing

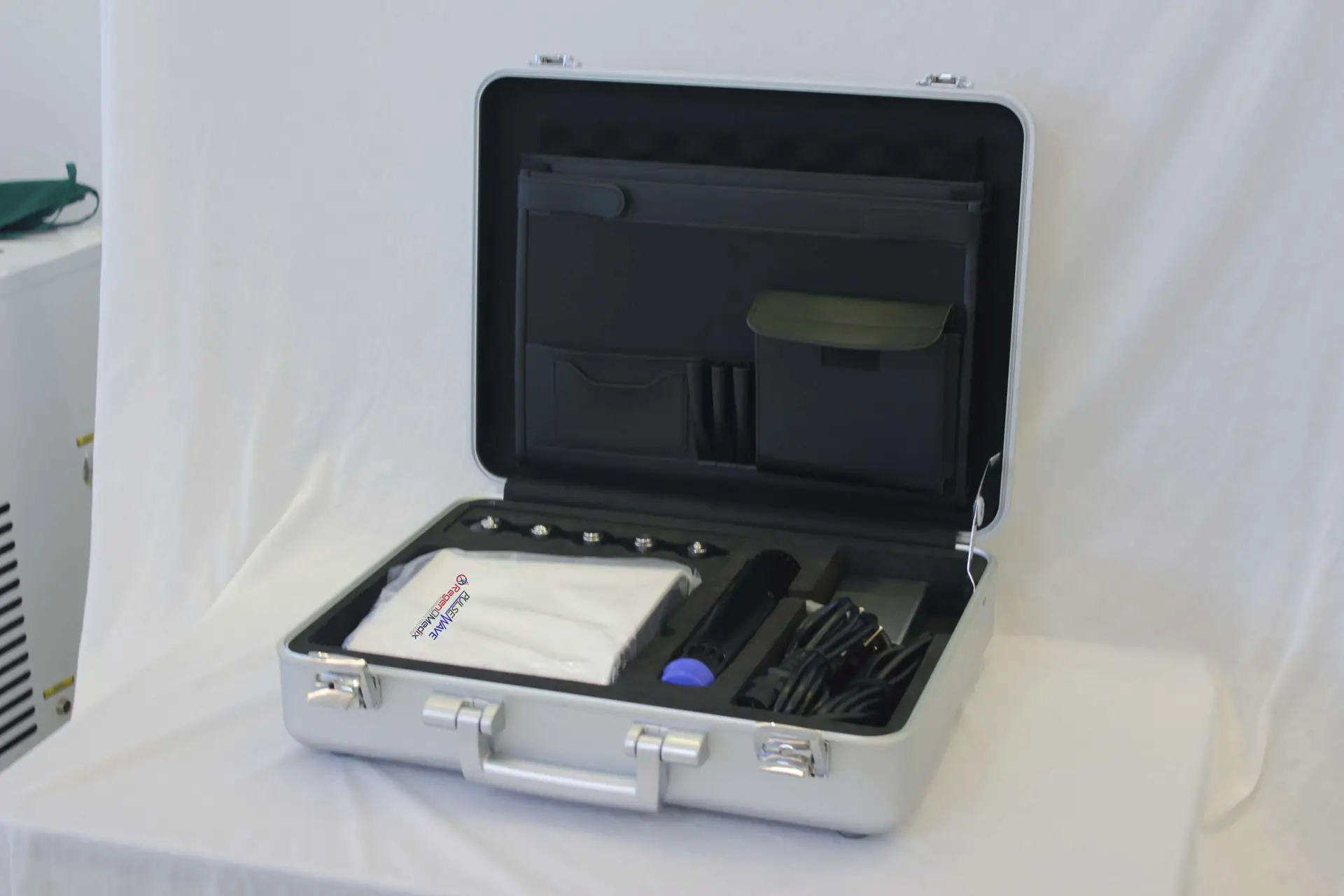

Aluminum Carrying Case
Carton/optional Aluminum Carry Case
Warranty
1 year full warranty
1 year full warranty
Weight
8 lbs.
38 lbs.
Dimensions
11.5″(w) x 13.5″ (I) x 6″ (tall)
11.5″(w) x 13.5″ (I) x 6″ (tall)
