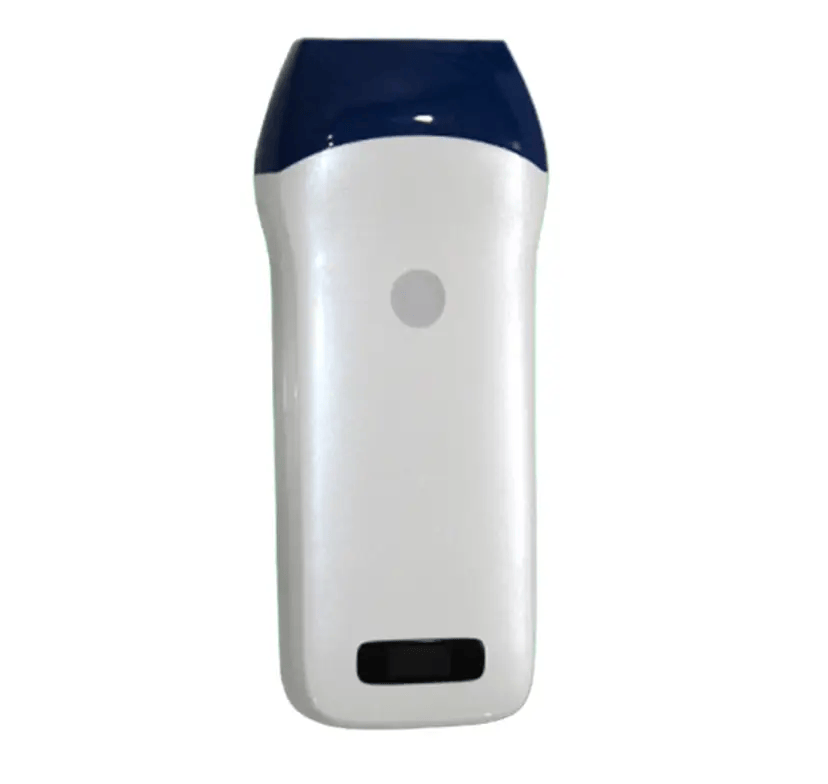

Wireless Ultrasound Probe
Wireless Ultrasound
Probe B – Mode/Color Doppler
FDA Class II cleared:
| Proprietary Name: | RegenoSonic US-155 |
| Classification Name: | SYSTEM, IMAGING, PULSED ECHO, ULTRASONIC |
| Product Code: | IYO |
| Device Class: | 2 |
| Regulation Number: | 892.1560 |
| Medical Specialty: | Radiology |
| Registered Establishment Name: | ZIZION GROUP Inc. |
| Registered Establishment Number: | 3009435759 |
| Owner/Operator: | Zizion Group Inc. |
| Owner/Operator Number: | 10043366 |
| Establishment Operations: | Distributor |
Features:
- Operates with Tablet PC or Smart Phone (iOS, Android)
- Color Doppler
- Built-in and replaceable battery
- Advanced digital imaging technology, clear image
- Highly cost-effective
- Wireless connectivity, easy to operate
- Small and light, easy to carry
- Effective in the emergency room, clinic, outdoors, and in veterinary use
- Intelligent terminal platform, powerful application expansion functions, storage, communication, and printing
Specifications:
- Scan mode: Mechanical sector scanning, Electronic Convex, or linear array scanning
- Frequency: 128 probe elements Convex probe (7.5/10.0MHz)
- Supports Imaging processing: Dynamic, Focus point, Harmonic, Noise Deducing, TGC control
- Elements: 128 elements for ZG-US-MSLPU55B
- Scanning Depth: 20mm-55mm, adjustable
- Field of view (linear array): 80 degrees
- Screen: Smartphone or tablet screen
- Supported operating systems: iOS, Android
- Display mode: B, B/M
- Frame rate: 12 f/s
- Image gray scale: 256 levels
- Image/video storage: Store on mobile phone or tablet PC
- Measurement: distance, area, obstetrics, and orthopedic
- Power: integrated lithium battery 4300mAh
- Power consumption: 10W (unfreeze)/4W (freeze)
- Battery working time: 3-4 hours (we need something else)
- Size: 156mm x 60mm x 24mm
- Net weight: 250 grams
Instructions:
1. Download “WirelessUSG” from the Apple App Store or Google Play Store.
2. After installation, power on the probe. Select Wi-Fi scan on your tablet or mobile phone. Select Wi-Fi on the probe, and use the serial number of the probe as the password to connect the devices.
Specifications:
Power Energy: 5VA
Rated input power: d.c.5V,1A
Built-in Battery: d.c.3.8V,4200mAh
